Integrating web workers in a React app with Comlink

6 min read 1876

Integrating Web Workers In A React App With Comlink

JavaScript is famously single-threaded. However, if you’re developing for the web, you may well know that this is not quite accurate. There are web workers:

A worker is an object created using a constructor (e.g., Worker()) that runs a named JavaScript file — this file contains the code that will run in the worker thread; workers run in another global context that is different from the current window.

Given that there is a way to use other threads for background processing, why doesn’t this happen all the time? Well, there are a number of reasons, not least of which is the ceremony involved in interacting with web workers. Consider the following example that illustrates moving a calculation into a worker:

// main.js
function add2NumbersUsingWebWorker() {
    const myWorker = new Worker("worker.js");

    myWorker.postMessage([42, 7]);
    console.log('Message posted to worker');

    myWorker.onmessage = function(e) {
        console.log('Message received from worker', e.data);
    }
}

add2NumbersUsingWebWorker();

// worker.js
onmessage = function(e) {
  console.log('Worker: Message received from main script');
  const result = e.data[0] * e.data[1];
  if (isNaN(result)) {
    postMessage('Please write two numbers');
  } else {
    const workerResult = 'Result: ' + result;
    console.log('Worker: Posting message back to main script');
    postMessage(workerResult);
  }
}

This is not simple; it’s hard to understand what’s happening. Also, this approach only supports a single method call. I’d much rather write something that looked more like this:

// main.js
function add2NumbersUsingWebWorker() {
    const myWorker = new Worker("worker.js");

    const total = myWorker.add2Numbers([42, 7]);
    console.log('Message received from worker', total);
}

add2NumbersUsingWebWorker();

// worker.js
export function add2Numbers(firstNumber, secondNumber) {
  const result = firstNumber + secondNumber;
  return (isNaN(result))
    ? 'Please write two numbers'
    : 'Result: ' + result;
}

There’s a way to do this using a library made by Google called Comlink. This post will demonstrate how we can use this. We’ll use TypeScript and webpack. We’ll also examine how to integrate this approach into a React app.

A use case for a web worker

Let’s make ourselves a TypeScript web app. We’re going to use create-react-app for this:

npx create-react-app webworkers-comlink-typescript-react --template typescript

Create a takeALongTimeToDoSomething.ts file alongside index.tsx:

export function takeALongTimeToDoSomething() {
    console.log('Start our long running job...');
    const seconds = 5;
    const start = new Date().getTime();
    const delay = seconds * 1000;

    while (true) {
        if ((new Date().getTime() - start) > delay) {
            break;
        }
    }
    console.log('Finished our long running job');
}

To index.tsx add this code:

import { takeALongTimeToDoSomething } from './takeALongTimeToDoSomething';

// ...

console.log('Do something');
takeALongTimeToDoSomething();
console.log('Do another thing');

When our application runs, we see this behavior:

Blocked UI

The app starts and logs Do something and Start our long running job... to the console. It then blocks the UI until the takeALongTimeToDoSomething function has completed running. During this time, the screen is empty and unresponsive. This is a poor user experience.

We made a custom demo for .
No really. Click here to check it out.

Hello worker-plugin and comlink

To start using Comlink, we’re going to need to eject our create-react-app application. The way create-react-app works is by giving you a setup that handles a high percentage of the needs for a typical web app. When you encounter an unsupported use case, you can run the yarn eject command to get direct access to the configuration of your setup.

Web workers are not commonly used in day-to-day development at present. Consequently, there isn’t yet a “plug-n-play” solution for workers supported by create-react-app. There are a number of potential ways to support this use case, and you can track the various discussions happening against create-react-app that covers this. For now, let’s eject with:

yarn eject

Then let’s install the packages we’re going to be using:

  • worker-plugin: This webpack plugin automatically compiles modules loaded in web workers
  • comlink: This library provides the RPC-like experience that we want from our workers
yarn add comlink worker-plugin

We now need to tweak our webpack.config.js to use the worker-plugin:

const WorkerPlugin = require('worker-plugin');

// ....

    plugins: [
      new WorkerPlugin(),

// ....

Do note that there are a number of plugins statements in webpack.config.js. You want the top-level one; look out for the new HtmlWebpackPlugin statement and place your new WorkerPlugin(), before that.

Workerize our slow process

Now we’re ready to take our long-running process and move it into a worker. Inside the src folder, create a new folder called my-first-worker. Our worker is going to live in here. Into this folder we’re going to add a tsconfig.json file:

{
  "compilerOptions": {
    "strict": true,
    "target": "esnext",
    "module": "esnext",
    "lib": [
      "webworker",
      "esnext"
    ],
    "moduleResolution": "node",
    "noUnusedLocals": true,
    "sourceMap": true,
    "allowJs": false,
    "baseUrl": "."
  }
}

This file exists to tell TypeScript that this is a web worker. Do note the "lib": [ "webworker" usage, which does exactly that.

Alongside the tsconfig.json file, let’s create an index.ts file. This will be our worker:

import { expose } from 'comlink';
import { takeALongTimeToDoSomething } from '../takeALongTimeToDoSomething';

const exports = {
    takeALongTimeToDoSomething
};
export type MyFirstWorker = typeof exports;

expose(exports);

There’s a lot happening in our small worker file. Let’s go through this statement by statement:

import { expose } from 'comlink';

Here we’re importing the expose method from Comlink. Comlink’s goal is to make exposed values from one thread available in the other. The expose method can be viewed as the Comlink equivalent of export. It is used to export the RPC style signature of our worker. We’ll see its use later.

import { takeALongTimeToDoSomething } from '../takeALongTimeToDoSomething';

Here we’re going to import our takeALongTimeToDoSomething function that we wrote previously, so we can use it in our worker.

const exports = {
    takeALongTimeToDoSomething
};

Here we’re creating the public-facing API that we’re going to expose.

export type MyFirstWorker = typeof exports;

We’re going to want our worker to be strongly typed. This line creates a type called MyFirstWorker, which is derived from our exports object literal.

expose(exports);

Finally, we expose the exports using Comlink. We’re done — that’s our worker finished. Now let’s consume it. Let’s change our index.tsx file to use it. Replace our import of takeALongTimeToDoSomething:

import { takeALongTimeToDoSomething } from './takeALongTimeToDoSomething';

With an import of wrap from Comlink that creates a local takeALongTimeToDoSomething function that wraps interacting with our worker:

import { wrap } from 'comlink';

function takeALongTimeToDoSomething() {
    const worker = new Worker('./my-first-worker', { name: 'my-first-worker', type: 'module' });
    const workerApi = wrap<import('./my-first-worker').MyFirstWorker>(worker);
    workerApi.takeALongTimeToDoSomething();
}

Now we’re ready to demo our application using our function offloaded into a web worker. It now behaves like this:

Non-blocked UI

There are a number of exciting things to note here:

  1. The application is now non-blocking. Our long-running function is now not preventing the UI from updating
  2. The functionality is lazily loaded via a my-first-worker.chunk.worker.js that has been created by the worker-plugin and comlink

Using web workers in React

The example we’ve showed so far demonstrates how you could use web workers and why you might want to. However, it’s a far cry from a real-world use case. Let’s take the next step and plug our web worker usage into our React application. What would that look like? Let’s find out.

We’ll return index.tsx back to its initial state. Then we’ll make a simple adder function that takes some values and returns their total. To our takeALongTimeToDoSomething.ts module, let’s add:

export function takeALongTimeToAddTwoNumbers(number1: number, number2: number) {
    console.log('Start to add...');
    const seconds = 5;
    const start = new Date().getTime();
    const delay = seconds * 1000;
    while (true) {
        if ((new Date().getTime() - start) > delay) {
            break;
        }
    }
    const total = number1 + number2;
    console.log('Finished adding');
    return total;
}

Let’s start using our long-running calculator in a React component. We’ll update our App.tsx to use this function and create a simple adder component:

import React, { useState } from "react";
import "./App.css";
import { takeALongTimeToAddTwoNumbers } from "./takeALongTimeToDoSomething";

const App: React.FC = () => {
  const [number1, setNumber1] = useState(1);
  const [number2, setNumber2] = useState(2);

  const total = takeALongTimeToAddTwoNumbers(number1, number2);

  return (
    <div className="App">
      <h1>Web Workers in action!</h1>

      <div>
        <label>Number to add: </label>
        <input
          type="number"
          onChange={e => setNumber1(parseInt(e.target.value))}
          value={number1}
        />
      </div>
      <div>
        <label>Number to add: </label>
        <input
          type="number"
          onChange={e => setNumber2(parseInt(e.target.value))}
          value={number2}
        />
      </div>
      <h2>Total: {total}</h2>
    </div>
  );
};

export default App;

When you try it out, you’ll notice that entering a single digit locks the UI for five seconds while it adds the numbers. From the moment the cursor stops blinking to the moment the screen updates, the UI is non-responsive:

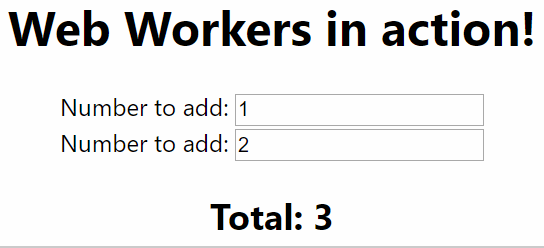

Blocked UI In Our React App

So far, so classic. Let’s web worker-ify this!

We’ll update our my-first-worker/index.ts to import this new function:

import { expose } from "comlink";
import {
  takeALongTimeToDoSomething,
  takeALongTimeToAddTwoNumbers
} from "../takeALongTimeToDoSomething";

const exports = {
  takeALongTimeToDoSomething,
  takeALongTimeToAddTwoNumbers
};
export type MyFirstWorker = typeof exports;

expose(exports);

Alongside our App.tsx file, let’s create an App.hooks.ts file.

import { wrap, releaseProxy } from "comlink";
import { useEffect, useState, useMemo } from "react";

/**
 * Our hook that performs the calculation on the worker
 */
export function useTakeALongTimeToAddTwoNumbers(
  number1: number,
  number2: number
) {
  // We'll want to expose a wrapping object so we know when a calculation is in progress
  const [data, setData] = useState({
    isCalculating: false,
    total: undefined as number | undefined
  });

  // acquire our worker
  const { workerApi } = useWorker();

  useEffect(() => {
    // We're starting the calculation here
    setData({ isCalculating: true, total: undefined });

    workerApi
      .takeALongTimeToAddTwoNumbers(number1, number2)
      .then(total => setData({ isCalculating: false, total })); // We receive the result here
  }, [workerApi, setData, number1, number2]);

  return data;
}

function useWorker() {
  // memoise a worker so it can be reused; create one worker up front
  // and then reuse it subsequently; no creating new workers each time
  const workerApiAndCleanup = useMemo(() => makeWorkerApiAndCleanup(), []);

  useEffect(() => {
    const { cleanup } = workerApiAndCleanup;

    // cleanup our worker when we're done with it
    return () => {
      cleanup();
    };
  }, [workerApiAndCleanup]);

  return workerApiAndCleanup;
}

/**
 * Creates a worker, a cleanup function and returns it
 */
function makeWorkerApiAndCleanup() {
  // Here we create our worker and wrap it with comlink so we can interact with it
  const worker = new Worker("./my-first-worker", {
    name: "my-first-worker",
    type: "module"
  });
  const workerApi = wrap<import("./my-first-worker").MyFirstWorker>(worker);

  // A cleanup function that releases the comlink proxy and terminates the worker
  const cleanup = () => {
    workerApi[releaseProxy]();
    worker.terminate();
  };

  const workerApiAndCleanup = { workerApi, cleanup };

  return workerApiAndCleanup;
}

The useWorker and makeWorkerApiAndCleanup functions make up the basis of a shareable worker Hooks approach. It would take very little work to parameterize them so this could be used elsewhere. That’s outside the scope of this post but would be extremely straightforward to accomplish.

Time to test! We’ll change our App.tsx to use the new useTakeALongTimeToAddTwoNumbers Hook:

import React, { useState } from "react";
import "./App.css";
import { useTakeALongTimeToAddTwoNumbers } from "./App.hooks";

const App: React.FC = () => {
  const [number1, setNumber1] = useState(1);
  const [number2, setNumber2] = useState(2);

  const total = useTakeALongTimeToAddTwoNumbers(number1, number2);

  return (
    <div className="App">
      <h1>Web Workers in action!</h1>

      <div>
        <label>Number to add: </label>
        <input
          type="number"
          onChange={e => setNumber1(parseInt(e.target.value))}
          value={number1}
        />
      </div>
      <div>
        <label>Number to add: </label>
        <input
          type="number"
          onChange={e => setNumber2(parseInt(e.target.value))}
          value={number2}
        />
      </div>
      <h2>
        Total:{" "}
        {total.isCalculating ? (
          <em>Calculating...</em>
        ) : (
          <strong>{total.total}</strong>
        )}
      </h2>
    </div>
  );
};

export default App;

Now our calculation takes place off the main thread and the UI is no longer blocked!

Non-blocked UI In Our React App
